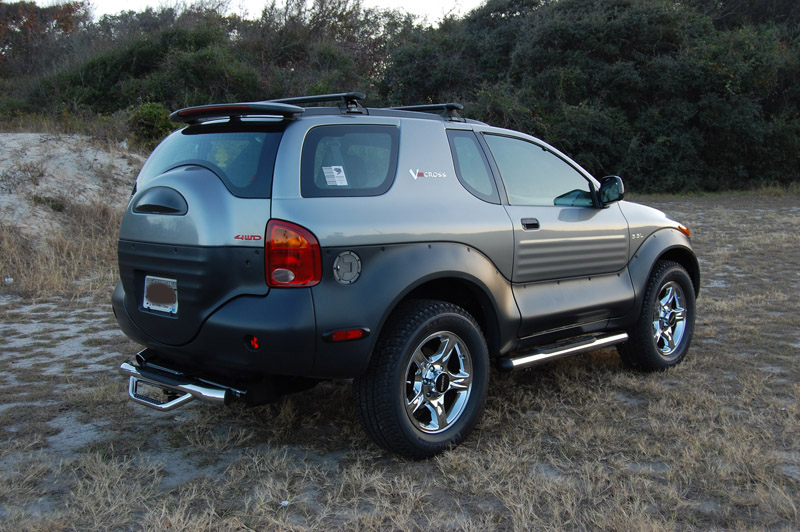

2001 ISUZU VEHICROSS SEAT HEATER and TPMS DISPLAY INSTALLATION

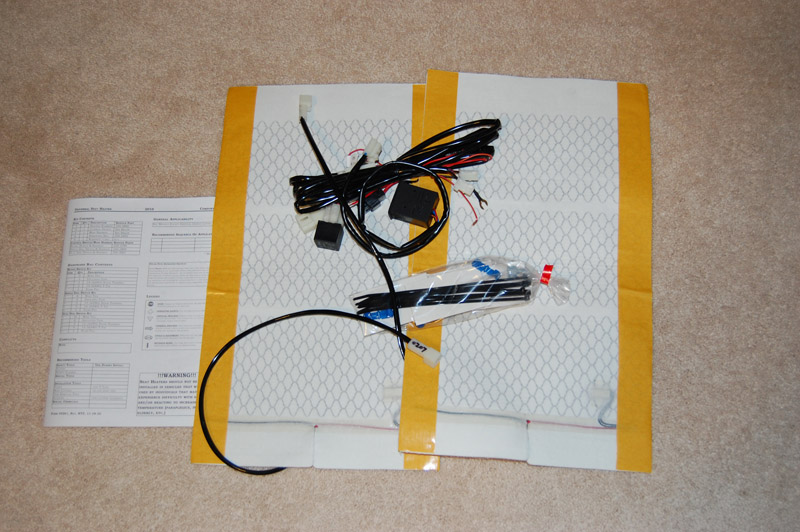

- Rosta Seat Heater (2 set Single-Dial Switch)

- KIPOINT TPMS (Tire Pressure Monitoring System 4 wheel)

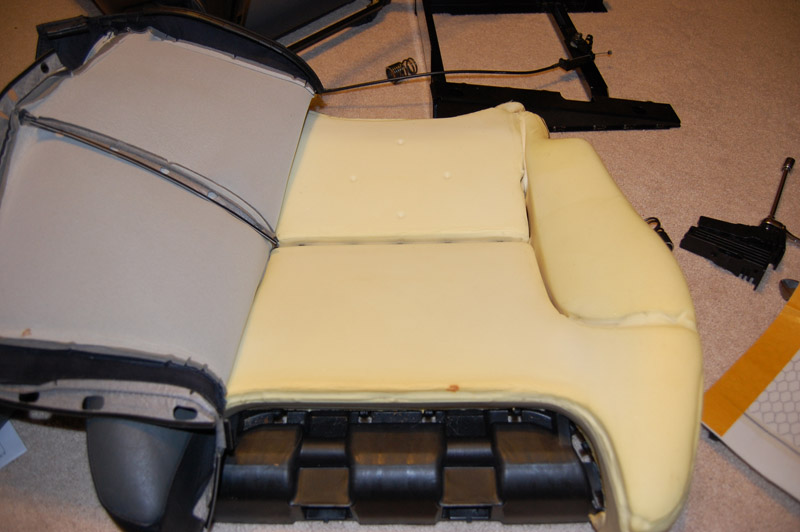

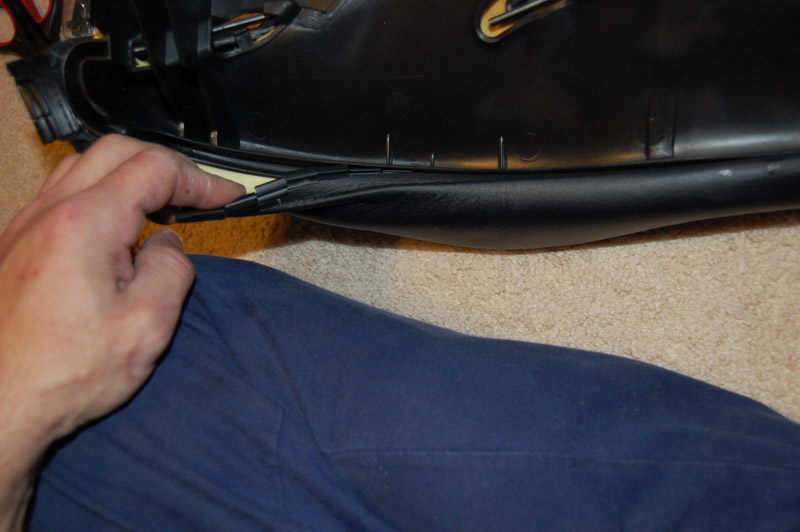

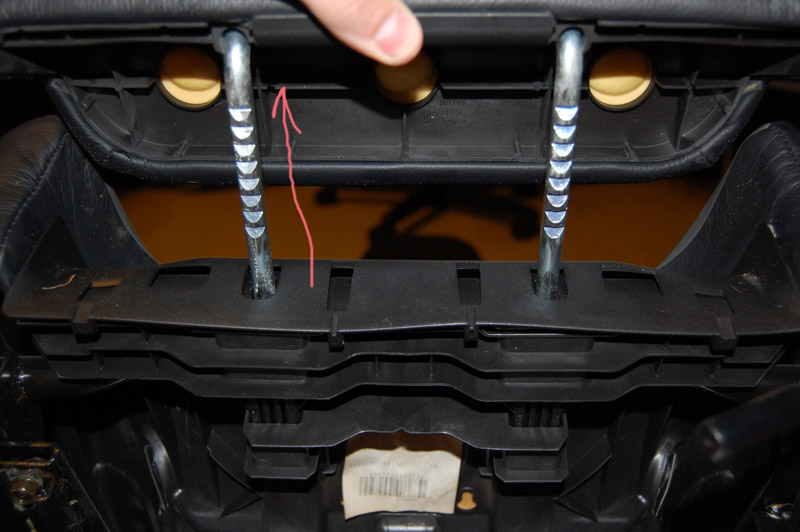

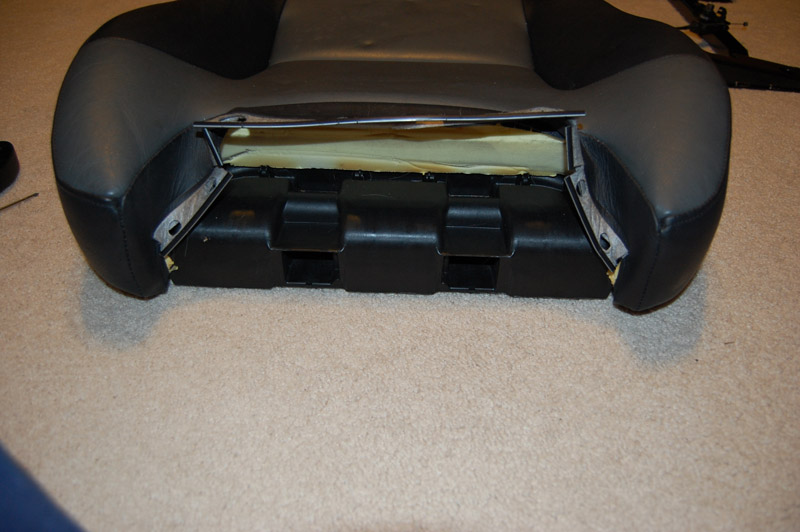

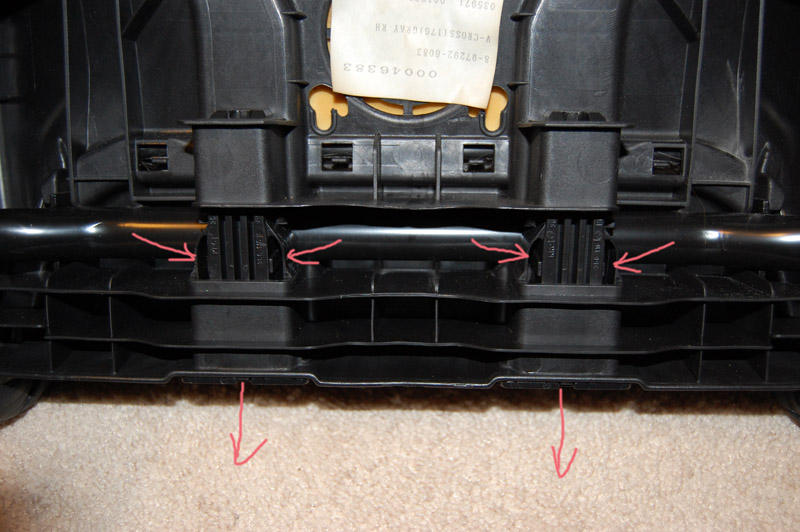

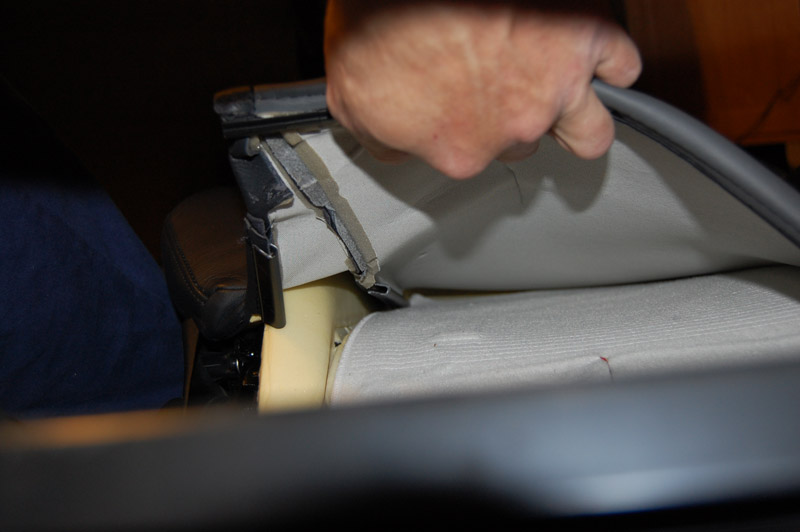

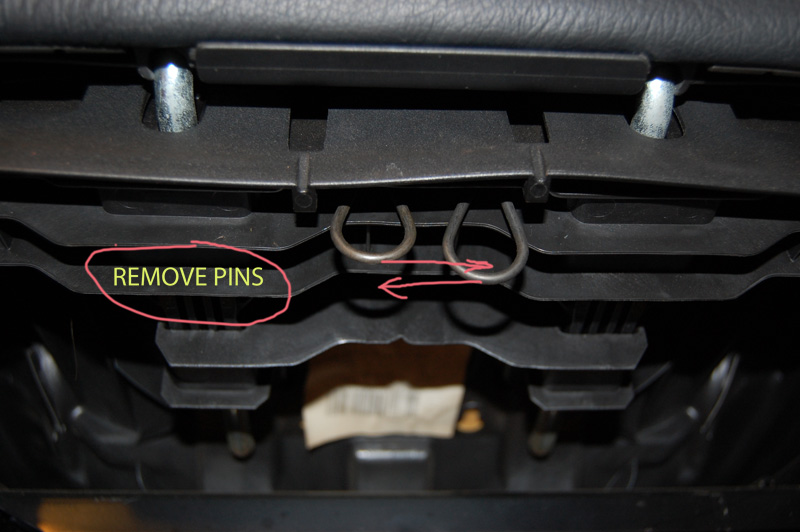

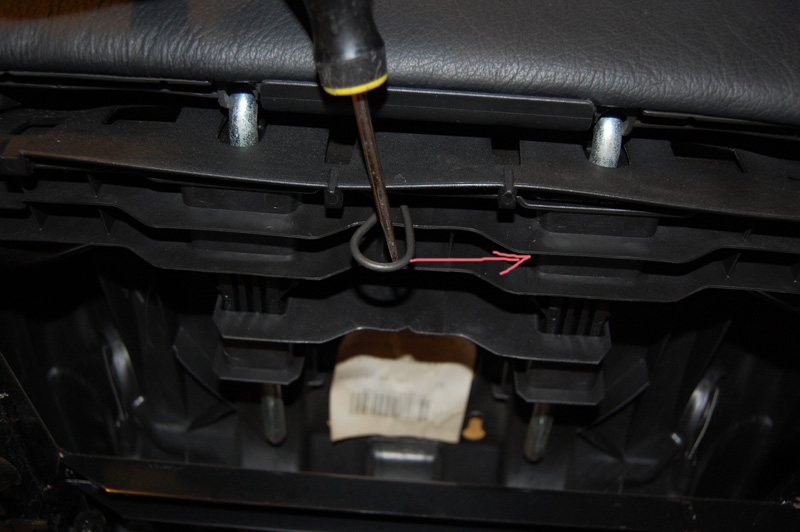

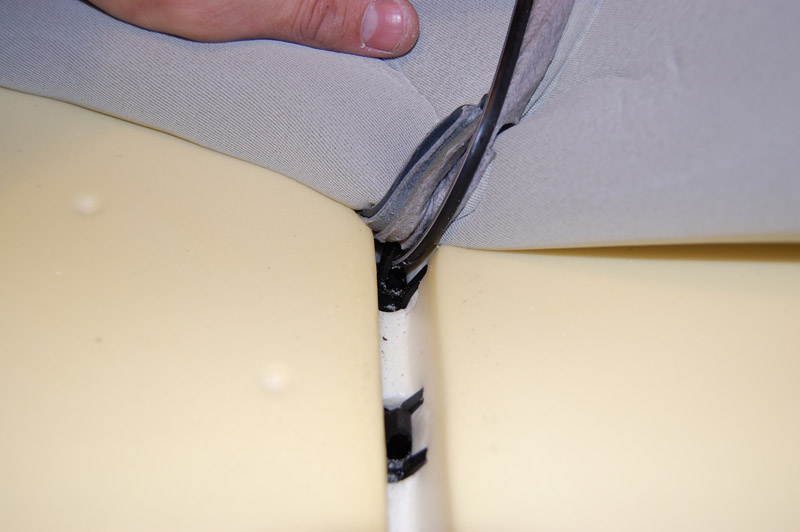

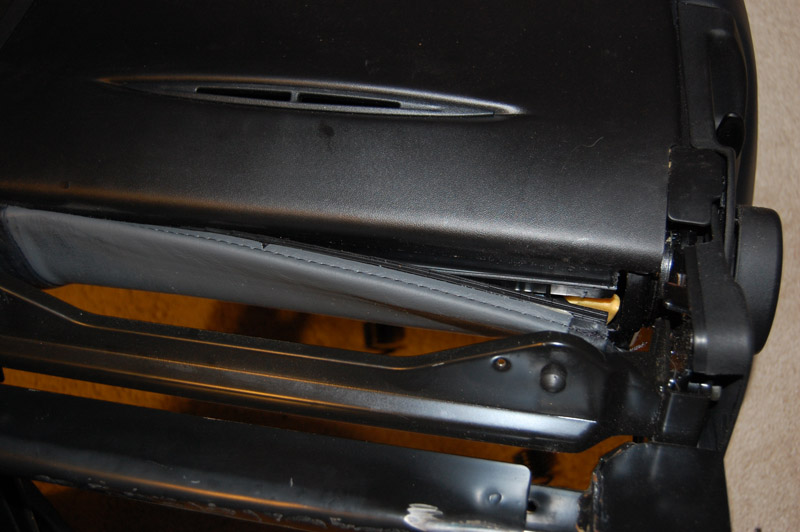

Approximate Installation Time (driver side & passanger side, included seat removing , wiring ) : Less than 3 hours

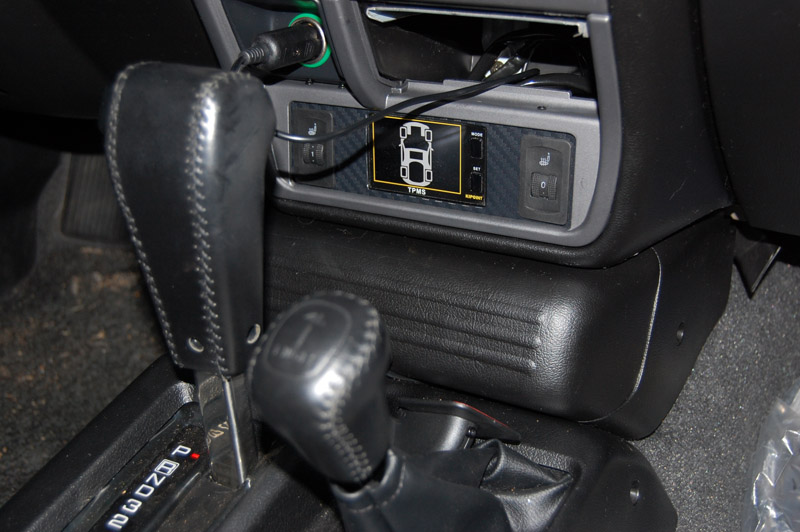

TPMS sensors are installed in the tire shop , when i got my new tires a few weeks ago , the display installation really easy , just connect to a +12V and Ground :) or you can use a cigarette lighter plug ( i connected to the car electrical system )

WIRING Single-Dial Switch Kit

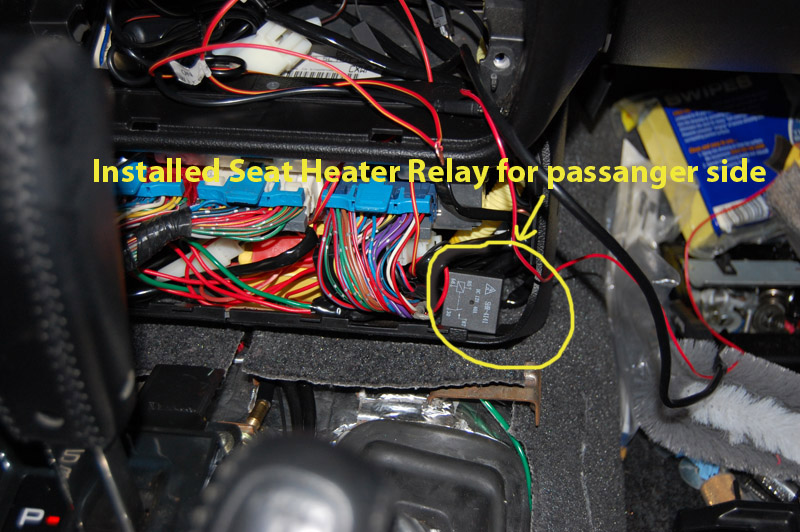

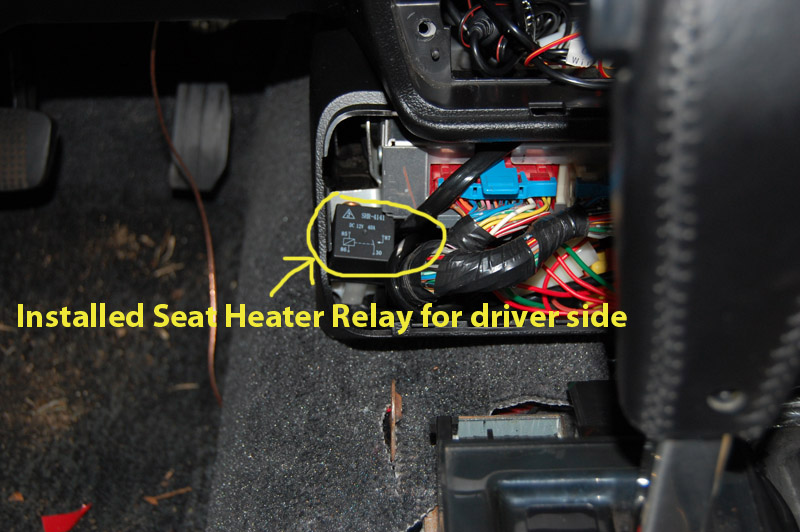

• RED WIRE : Connect to accessory +12V / 10 AMP Circuit (the wiring harness included a 10AMP fuse and a relay for each set) NOTE: Inproper installation could lead to battery drain if connected to a constant battery source without relay.
• RED/YELLLOW STRIPE WIRE : Connect to Ignition +12V/5AMP Circuit ( i connected both sets to a cigarette lighter circuit)
• BLACK WIRE : Ground point on the car body with high current capacity
